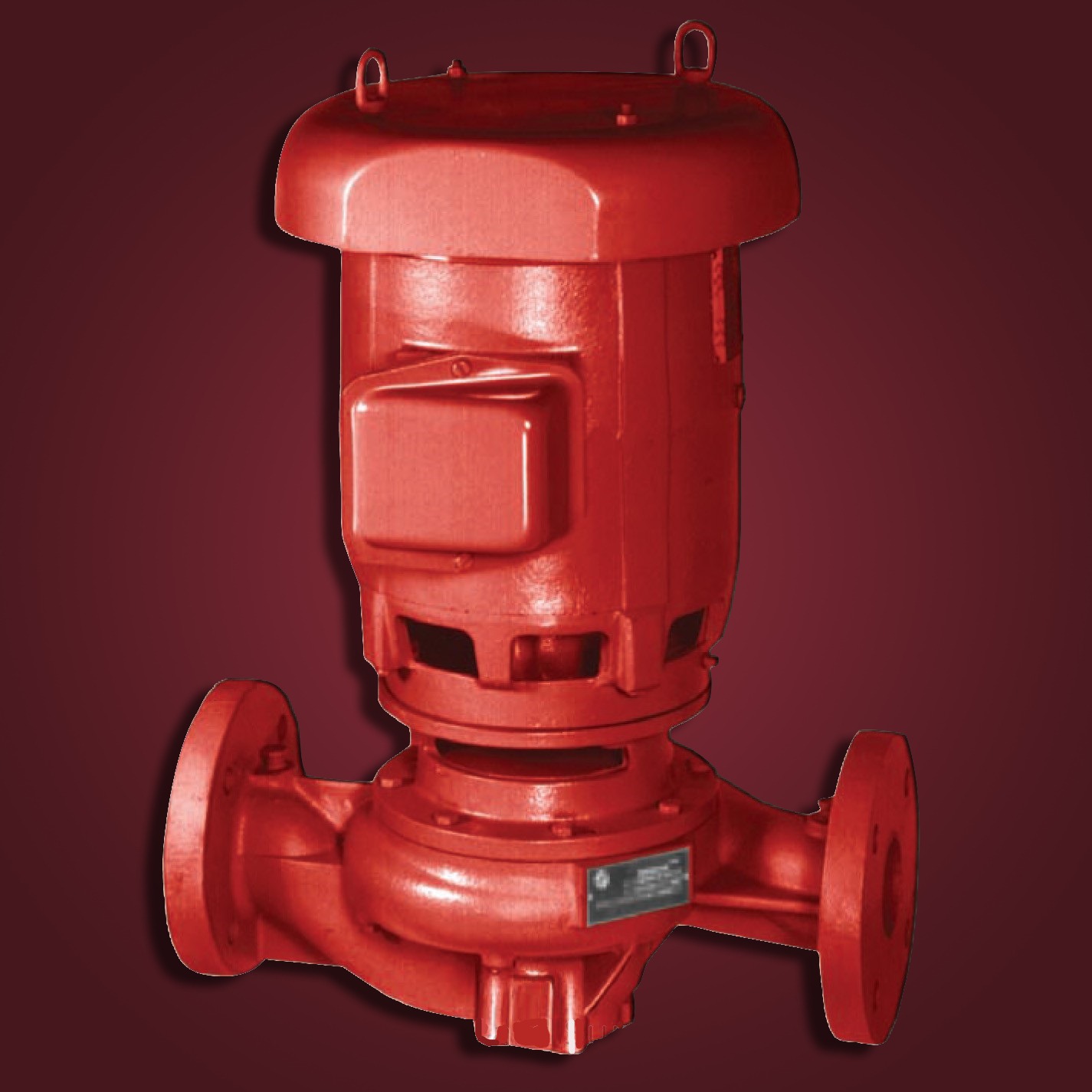

Bell & Gossett Series E-80 Pump

The e-80 close-coupled, in-line pump is the standard model in Bell & Gossett’s highly efficient Series e-80 product line but this heavy-duty line of pumps is more than a standard line of pumps! Each pump employs high quality components especially designed to provide smooth performance, minimize maintenance and extend pump life. Series e-80 pumps are designed to perform in a wide range of operating conditions. And, when integrated with optional PPS controllers, IPC or Integrated Technologic (IT) variable frequency drives with sensored or sensorless control capabilities, performance and efficiency are even greater!

Series e-80 pumps are available in 1-1/2’’ through 8’’ sizes, 1/4 to 50 HP at 1750 RPM and 5 to 60 HP at 3500 RPM. Available in stainless steel fitted construction. Flows to 2500 GPM, heads to 380 feet. Designed for horizontal and vertical in-line mounting these centrifugal pumps are ideal for hydronic heating and cooling systems, light industrial processes, and general service.

Product Features

Best-in-class hydraulic performance
Low operating and maintenance cost
Optional flange mounting supports
Horizontal or vertical installation
Several seal options
Integrated variable speed drive (optional)
Sensored or sensorless control capability (optional)

We stock the E-80 pumps in 1.5″-5″ suction & discharge. Typically ships in 7-10 days!

Features

Mechanical Seal Design

The seal of the Series e-80 pump has a compact Rotating Unitized Seal Head design for easy seal replacement. The e-80 pump includes a standard internally flushed mechanical seal with a maximum working pressure of 175 psi. Two optional mechanical seals, each with a maximum pressure of 250 psi, are also available, one is installed internally and one for external installation. Both seal types utilize an external flush line to prolong seal life.

Shaft Jacking Coupling

The Series e-80 pumps feature a patented shaft jacking coupling design to simplify maintenance. This allows one serviceman to replace the mechanical seal without the need for an additional person to help lift the pump shaft during reassembly. This innovative feature is a major benefit for service contractors and building owners as it can reduce labor cost and pump downtime by 40% (depending on mechanical room layout and availability of lifting equipment).

B&G E-80 Information

B&G Series 80 Pumps Brochure

B&G Series 80 Pumps Curves

B&G Series 80 Pumps Manual

B&G Series 80 Pumps Parts List

B&G Series 80 Pumps Brochure With Drive

Impeller Trim Guide e-1510, e-1532, e-1531, e-80 and e-80SC pumps

Split Coupled Parts List B&G E-80 SC

B&G E-80 Exploded View Parts

B&G E-80SC Splt Coupled Exploed View Parts

Get A Pump Quote

Please fill out this form in as much detail as possible and we can send you a quote on a pump. If you are replacing an existing pump, please upload the motor tag and pump tag. We stock many brands in our Surrey BC warehouse, find out if we have what you need in stock today! If we have it in stock you can get your pump usually within 3-5 days!

Perfomance Curves

Performance Curves

Curve

e-80 1750 Curves

|

JPG | 459.99 kB
e-80 1150 Curves

|

JPG | 383.23 kB
e-80 3550 Curves

|

JPG | 342.6 kB
Series e-80 In-Line Mounted Centrifugal Pump Performance Curves – 60 HZ (B 193F)

|

PDF | 5.07 MB
e-80SC 1750 Curves

|

JPG | 474.21 kB
e-80SC 1150 Curves

|

JPG | 443.55 kB
e-80SC 3550 Curves

|

JPG | 331.25 kB

e-80 1150 Curves

e-80 1750 Curves

e-80 3550 Curves
