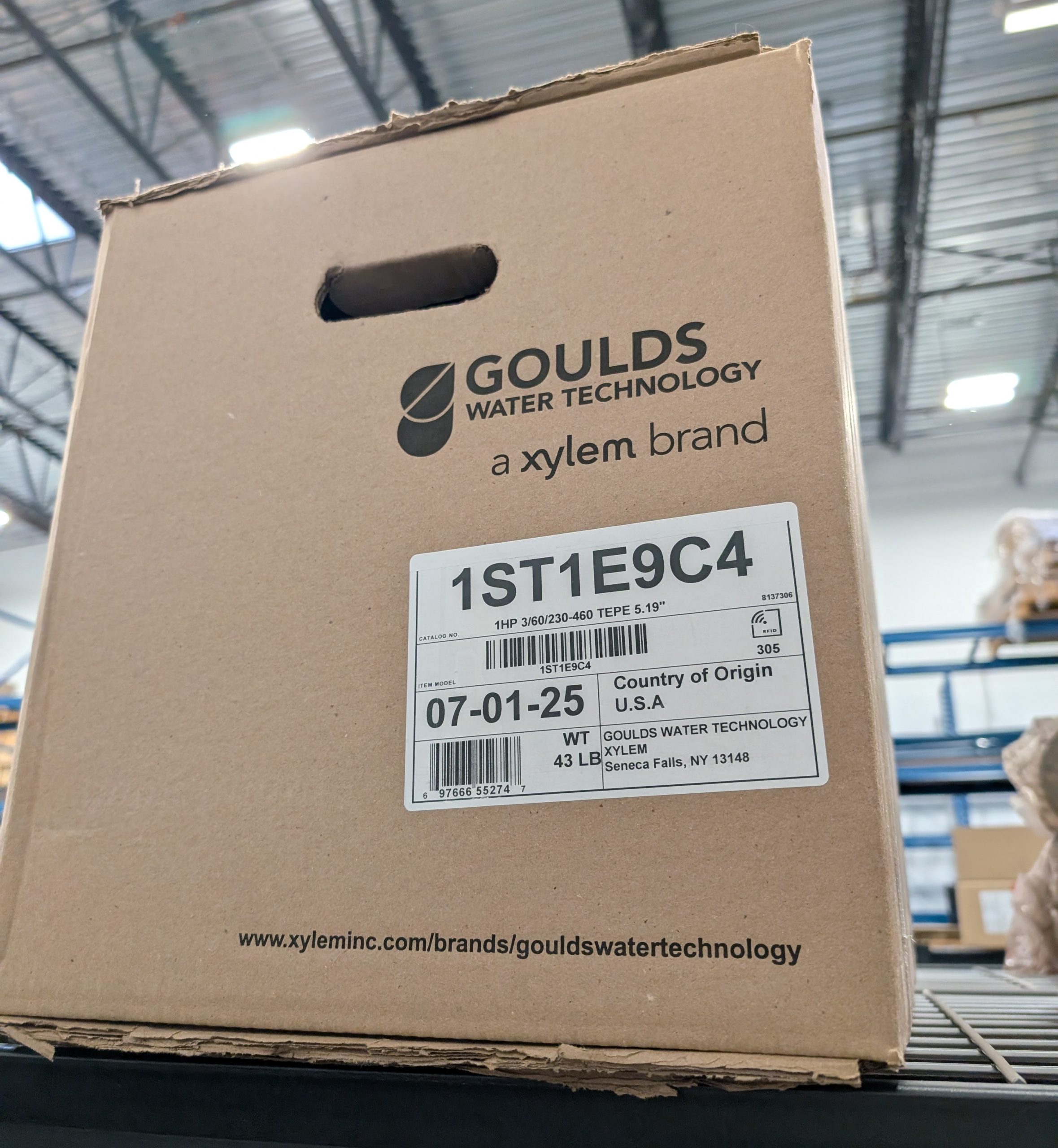

Name: Goulds 1ST1E9C4, Centrifugal Pump, NPE Series
Brand: Goulds
SKU: 1ST1E9C4
Availability: InStock

Goulds 1ST1E9C4, Centrifugal Pump, NPE SeriesGoulds

$1,895.00

Goulds 1ST1E9C4, Centrifugal Pump, NPE Series

Goulds 1ST1E9C4, Centrifugal Pump, NPE Series, 1 HP, 208-230/460 Volts, 3 Phase, 3500 RPM, 1″ NPT Discharge, 1-1/4″ NPT Suction, 45 GPM Max., 114 ft. Max. Head, 5-3/16″ Impeller, TEFC Enclosure, Stainless Steel Body

Need Help?
Call For Assistance: (604) 590-4414

Please note that we ship Monday - Friday 8:00 AM - 4:30PM PST. Orders are processed as quickly as possible.

SHOP SECURE WITH MONERIS!

Goulds 1ST1E9C4, Centrifugal Pump, NPE Series

Additional information

Weight	40 lbs
Dimensions	22 × 14 × 16 in

Features

Goulds NPE Series Close Coupled End Suction Centrifugal Pump

Features

The close coupled compact, flexible design saves space, can be mounted horizontally or vertically, and simplifies maintenance
Standard NEMA motors have stainless steel shaft and rugged ball bearing design for continuous duty under all conditions
Superior, complete AISI 316L stainless steel liquid handling components and mounting bracket for corrosion resistance, quality appearance, and improved strength and durability
Casing and adapter have NPT threaded centerline connections, easily accessible vent, prime and drain connections with stainless plugs
Unique floating O-ring enclosed impeller design maintains maximum efficiencies
High efficiency enclosed impeller with unique floating seal ring design maintains maximum efficiencies over the life of the pump without adjustment
Casing and adapter features stainless steel construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connections with stainless steel plugs. Optional seal face vent/flush available.
Standard John Crane Type 21 with carbon versus silicon-carbide faces, Viton elastomers, and 316 stainless metal parts. Optional high temperature and chemical duty seals available.
Totally Enclosed Fan Cooled (TEFC) premium efficiency motor

Applications

Water circulation
Booster service
Liquid transfer
Spray system
Chillers
Washing/cleaning systems
Injection molding cooling
Reverse osmosis
Air scrubbers
Heat exchangers
Filtration systems
Jockey pumps
OEM applications
General water services

Pump Parts Breakdown
