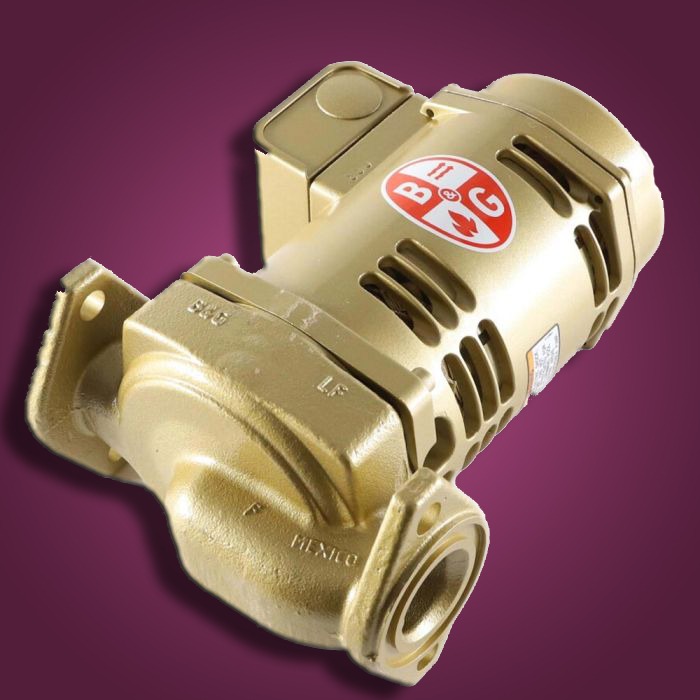

Bell & Gossett PL-100B Bronze Booster Pump 2/5HP 3250RPM 115V (1BL136LF)

$3,084.00

Bell & Gossett PL-100B Bronze Booster Pump 2/5HP 3250RPM 115V (1BL136LF)

Bell & Gossett 1BL136LF model PL-100B bronze permanently lubricated booster pump with a 2/5 hp, 3250 rpm, 115 voltage, single-phase motor. This Series PL pump uses 1 to 1-1/2″ flanges and has maximum temperature rating of 225°F and a maximum pressure rating of 150 psi. The Series PL close coupled booster pumps are specifically designed for quiet operation in hydronic, radiant and geothermal heating and cooling systems.  These inline permanently lubricated pumps are available in cast iron or lead-free bronze body construction.

-
+
If you need help with your order or have any questions we are ready to help!
CALL INLINE SALES (604) 590-4414 FOR ASSSISTANCE
Bell gossett pumps hdr
SKU1BL136LF
StatusAvailable on backorder
Secure payment cards

Bell & Gossett PL-100B Bronze Booster Pump 2/5HP 3250RPM 115V (1BL136LF)

Bell & Gossett 1BL136LF model PL-100B bronze permanently lubricated booster pump with a 2/5 hp, 3250 rpm, 115 voltage, single-phase motor. This Series PL pump uses 1 to 1-1/2″ flanges and has maximum temperature rating of 225°F and a maximum pressure rating of 150 psi. The Series PL close coupled booster pumps are specifically designed for quiet operation in hydronic, radiant and geothermal heating and cooling systems.  These inline permanently lubricated pumps are available in cast iron or lead-free bronze body construction.

Product Features

  • B&G’s powerful, dry-motor design delivers exceptional performance
  • 25% more efficient than competition
  • Precision-machined and balanced alloy steel rotor for superior performance.
  • Solid “Stiff-Shaft” design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses.
  • XL-11™ Precision-Crafted Bearing System
  • Permanently oil lubricated
  • Completely maintenance free
  • Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions
  • Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation
  • Double sided stainless steel neck ring for optimum efficiency

Additional information

Weight 17 lbs
Dimensions 11 × 10 × 5 in

Specifications

Brand Bell & Gossett
MPN 1BL136LF
B&G Series Series PL
B&G Model PL-100B
Model PL-100B
Pump Class Booster
Pump Type Circulator
Pump Construction Lead-Free Bronze
Pump Mounting In-Line
Pump Connection Size 1″, 1-1/4″, 1-1/2″
Pump Connection 2-Bolt Flanged
Flanges Included No
Motor HP 2/5 HP
Motor RPM 3250 RPM
Motor Voltage 115V
Motor Phase 1 Ph
Motor Hertz 60 Hz
Motor Enclosure ODP
Working Pressure 150 psi
Max Temp 225°F
Potable Water Yes
Weight 16.77

Downloads

Zoning Reference Guide

Booster Pump Service Guide

B&G What To Know About Water System

SERIES 100, SERIES LR, NRF, NBF and SERIES PL BOOSTERS Warranty

NRF Submittals

NBF SSF Submittals

Wet Rotor Pump Specs

B&G Hydronic Products

PL Series Booster Pumps

Submittal-Series-PL

bg-series-ld3-hd3-pd_installation-and-service

bg-series-100-pr-hv-2-2half-ld3-hd3-pd_submittal (2)
