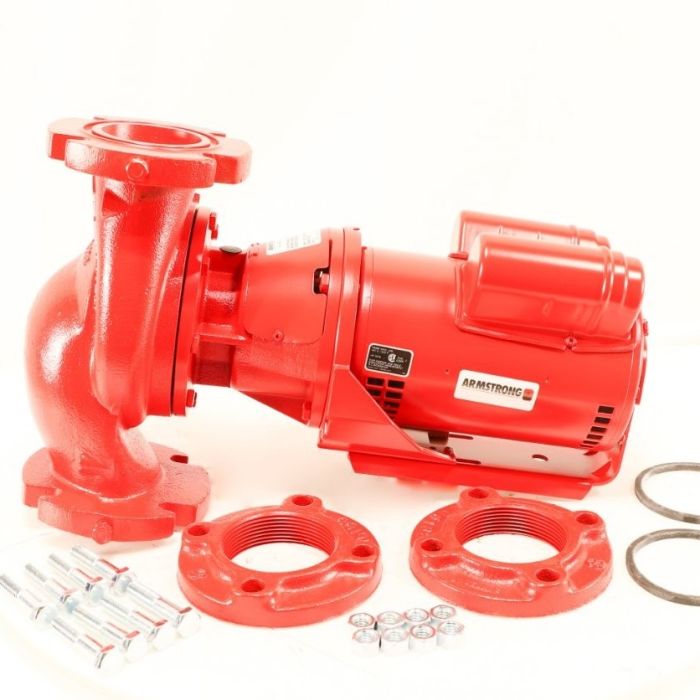

Armstrong S-57 Series S In-line Circulator 3″ Flg 3/4HP 208-230/460v 3Ph 106285MF-136

$4,424.40

Armstrong S-57 Series S In-line Circulator 3″ Flg 3/4HP 208-230/460v 3Ph 106285MF-136

Name: Armstrong S-57 Series S In-line Circulator 3" Flg 3/4HP 208-230/460v 3Ph 106285MF-136
Brand: Armstrong
SKU: 106285MF-136
Price: 4424.40 CAD
Availability: BackOrder

The Armstrong Pump S-57-3 is a 3/4 HP, three phase circulator pump that features a radially-split bronze-fitted body, oversized stainless steel “maintenance free” shaft, centrifugal non-ferrous impeller, sintered silicon carbide seal, and modular construction. This model has a shaft and bearing module that can be easily removed and replaced. Armstrong Pump Series S & H circulator pump deploy a proven fixed-speed design that is cost-effective, durable, and easy to maintain. Models are available in the traditional sleeve-bearing design as well as the new, permanently-lubricated, maintenance-free design. The three piece modular construction, which uses a universal replacement shaft and bearing module, and the back pull-out design allows for easy replacement of wear components. Series S & H in-line circulators are suitable for applications such as hydronic heating and cooling, domestic water systems, multi-stage zoning, and general industrial service.

Typically ships in 1-2 weeks.

Features:

Weight

85 lbs

Dimensions

23 × 15 × 11 in

If you need help with your order or have any questions we are ready to help!
CALL INLINE SALES (604) 590-4414 FOR ASSSISTANCE

We work hard to get your order out as quickly as possible. In-stock products ship within 24 hours of your purchase. Custom-built pumps that are in stock are typically assembled and ready to ship within 5–7 business days. Orders are shipped Monday through Friday, between 8:00 AM and 4:30 PM (Pacific Time).

Armstrong S-57 Series S In-line Circulator 3″ Flg 3/4HP 208-230/460v 3Ph 106285MF-136

Typically ships in 1-2 weeks.

Additional information

Weight	85 lbs
Dimensions	23 × 15 × 11 in

Specifications

Brand	Armstrong Fluid Technology
MPN	106285MF-136A
Armstrong Pumps Series	Series S
Model	S57-3-BF
Pump Construction	Cast Iron-BF (Brz Fitted)
Pump Type	Circulator
Pump Class	Booster
Pump Mounting	In-Line
Pump Connection Size	3″
Pump Connection	Flanged
Flanges Included	Yes
Motor HP	3/4 HP
Motor RPM	1800 RPM
Motor Voltage	208-230/460V
Motor Phase	3 Ph
Motor Hertz	60 Hz
Motor Enclosure	ODP
Working Pressure	125 psi
Max Temp	225°F
Potable Water	No
UPC	672807441708
Replaces	106285-136
Weight	85.00

Downloads

Armstrong Circulator Replacement Parts Brochure

Armstrong Circulator Replacement Parts

Armstrong Astro 2 Brochure

Armstrong Cross Reference Chart

Armstrong Circulator Install Instructions

Armstrong Impellers

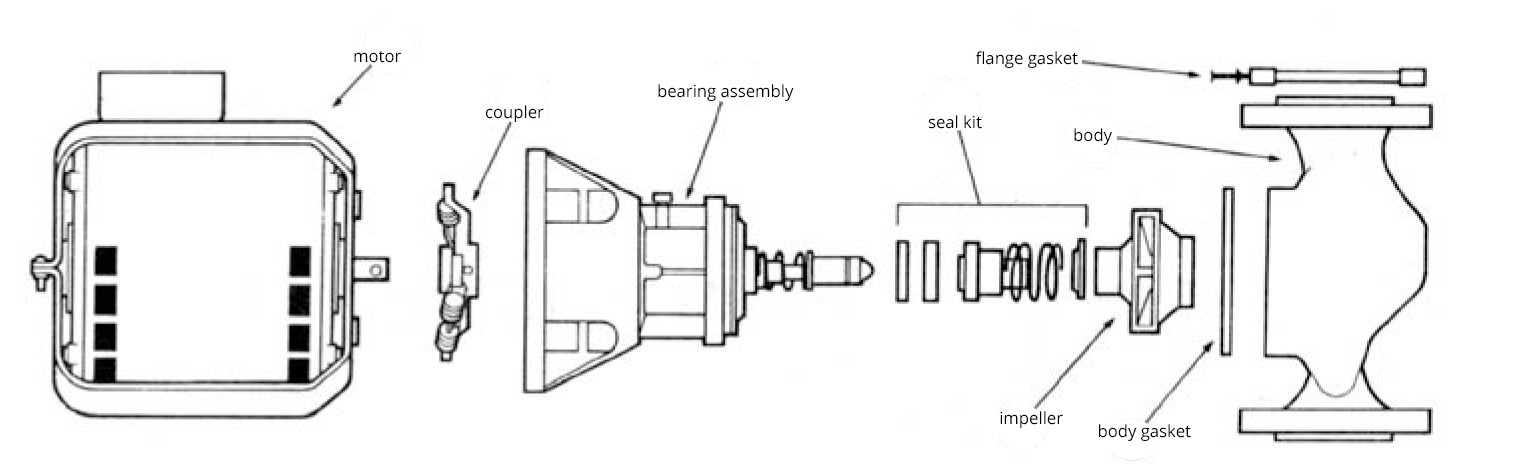

Drawing

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Armstrong

The Armstrong circulator pump is one of the best on the market and with their expertise in fluid flow, heat transfer, variable speed, and demand based control, Armstrong Fluid Technology leads the fluid systems industry, including plumbing and hvac in providing the most energy efficient and cost effective solutions to building professionals and owners around the globe. We carry both the commercial and residential line of Armstrong Pumps including commercial series 4030 base mounted end suction pumps, series 5200 & 5240 sump sewage pumps and series 4300 vertical in-line pumps, series 4360 vertical in-line pumps, 4380 vertical in-line pumps. Most residential pumps are normally stocked including the Armstrong Astro circulators, Armstrong series E.2 circulators and the Armstrong series S&H 3-piece circulating pumps.

View all Products

Shipping Policy

All orders are subject to order processing and fulfillment times.

Orders placed before 6:30 p.m. (Monday through Friday) are eligible for next business day shipping. Orders placed after 6:30 p.m., on weekends, or on statutory holidays will be processed on the next business day and are expected to ship within two business days.

We ship with Purolator to destinations across Canada.

Free shipping is available on orders over $3000.00.

Returns & Refunds

We offer a 30-day return policy from the date your order is received.

To qualify for a return, the item must:

Be unopened and unused.
Be in its original packaging and in resalable condition.
Be accompanied by your order confirmation, order number, or proof of purchase.

Once your return has been received and inspected, we will notify you whether your refund has been approved. If approved, your refund will be issued to your original method of payment. Please note that your bank or credit card provider may require additional time to process and post the refund.

Clearance and final sale items are not eligible for return, refund, or exchange.

Shipping charges are non-refundable unless the return is the result of our error or a defective product.

Search Products Here

Menu

Products

SHOP PARTS & PUMPS

8975002-304 Armstrong Seal 4300 1 1/8" Outside Seal Standard

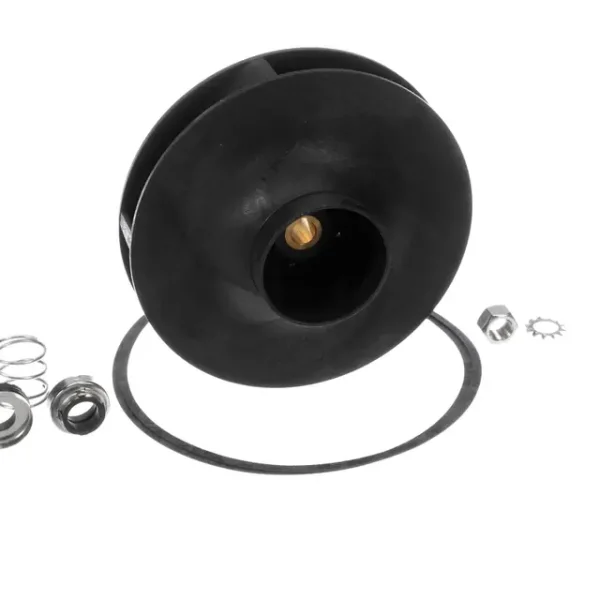

Armstrong 816304-317K Impeller Kit NFI 5.25" (S-57/H-54/1050-2B)
