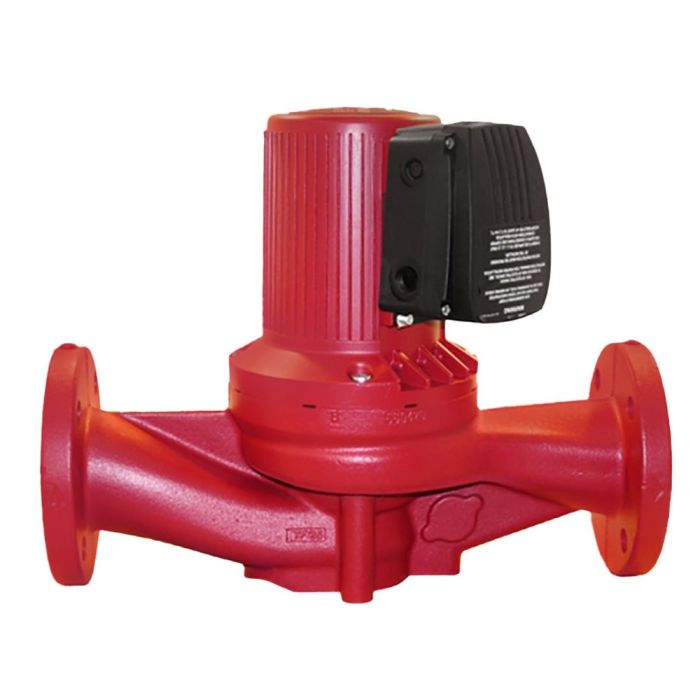

Grundfos 96402922 UPS80-160 F 3x575V Class125
Grundfos 96402922 UPS80-160 F 3x575V Class125 - Image 2

Grundfos 96402922 UPS80-160 F 3x575V Class125Grundfos

$3,256.47

Grundfos 96402922 UPS80-160 F 3x575V Class125

Grundfos VersaFlo UPS 80-160 F Cast Iron 2-Speed Circulator Pump, 575V at 60 Hz, 3 PH, 3 hp

Features

  • Pump and motor form an integral unit without shaft seal and with only two gaskets for sealing
  • The bearings are lubricated by the pumped liquid
  • Ceramic radial bearings
  • Carbon axial bearing
  • Stainless steel rotor can and bearing plate and rotor cladding
  • Aluminum alloy stator housing
  • Stator with built-in thermal switch
  • The pump is supplied with a standard module in the terminal box
  • The standard module is to be connected to the mains supply via external contactor
  • Controls without relay
BrandGrundfos
Status1 in stock
Tags, , ,
Categories,
FacebookXPinterestRedditDeliciousLinkedinWhatsappEmail

Grundfos 96402922 UPS80-160 F 3x575V Class125

Grundfos VersaFlo UPS 80-160 F Cast Iron 2-Speed Circulator Pump, 575V at 60 Hz, 3 PH, 3 hp

Features

  • Pump and motor form an integral unit without shaft seal and with only two gaskets for sealing
  • The bearings are lubricated by the pumped liquid
  • Ceramic radial bearings
  • Carbon axial bearing
  • Stainless steel rotor can and bearing plate and rotor cladding
  • Aluminum alloy stator housing
  • Stator with built-in thermal switch
  • The pump is supplied with a standard module in the terminal box
  • The standard module is to be connected to the mains supply via external contactor
  • Controls without relay

Specifications

  • AMP
    1.68;2.54
  • End Connection
    Flanged x Flanged
  • End Connection 1
    Flanged
  • Fitting Size 1
    4 in.
  • Height
    19 in.
  • Horsepower
    3 hp
  • Length
    14-3/4 in.
  • Maximum Feet of Head
    52-1/2 ft.
  • Maximum Temperature
    248
  • Pressure – Maximum
    145 psi
  • Pump Motor Type
    Canned Rotor
  • Pump Phase
    Triple Phase
  • RPM
    3513
  • Specifications – UL Listed
    Yes
  • VAC at 60 Hz
    575V
  • Width
    7-7/8 in.
  • Product Type
    Circulator Pumps
  • Minimum Temperature
    14
  • Phase
    Triple Phase
  • Fitting Sizes
    4 in.

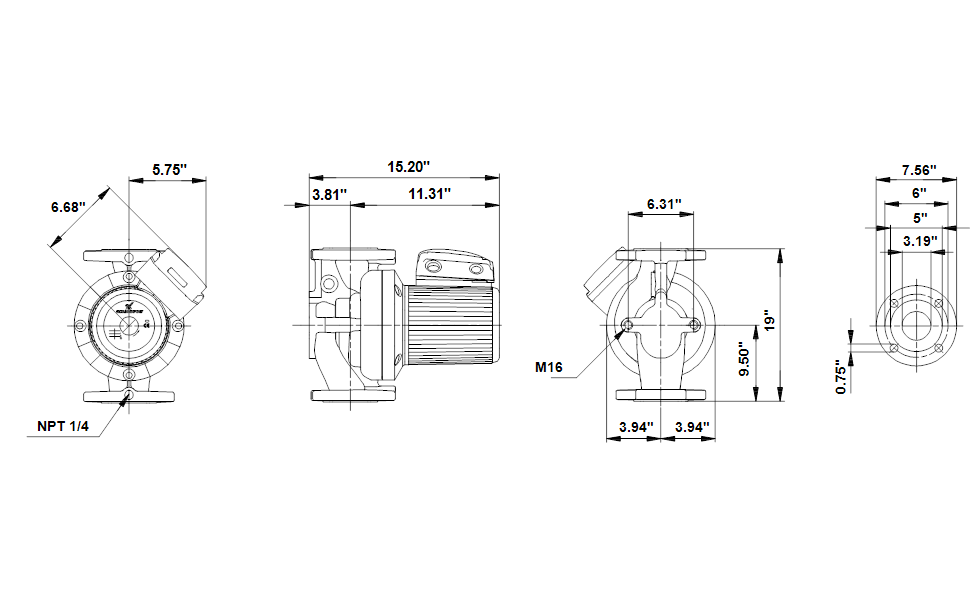

Drawings

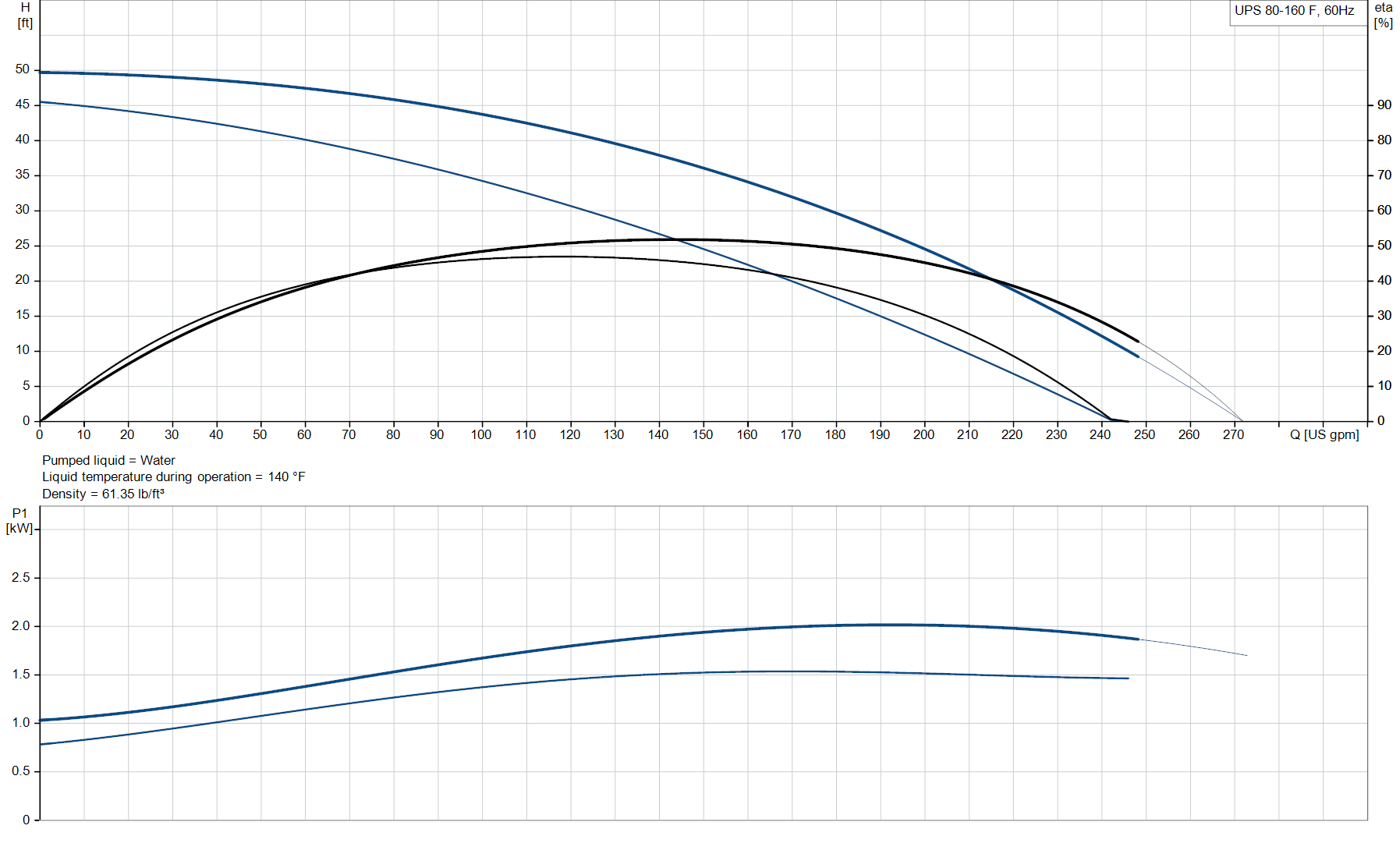

Pump Curve

Grundfos Downloads

UP Series circulators® Installation and operating instructions

3-Speed Technology The Power of Flexibility

Grundfos Variable Speed

UP Series

Magna Pumps

Magna Quick Guide

Magna3 Brochure

Grundfosliterature-5153572
