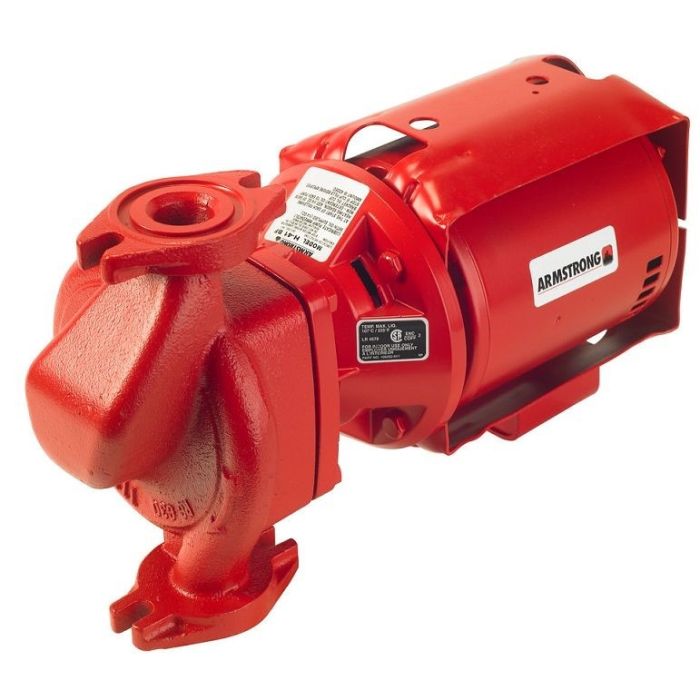

Armstrong H-41 Series H In-line Circulator 1″ Flg 1/6HP 115v 1Ph 174035MF-113

Name: Armstrong H-41 Series H In-line Circulator 1" Flg 1/6HP 115v 1Ph 174035MF-113
Brand: Armstrong
SKU: 174035MF-113
Price: 2107.80 CAD
Availability: BackOrder

The Armstrong Pump H-41 is a 1/6 HP, single phase circulator pump that features a radially-split bronze-fitted body, oversized stainless steel “maintenance free” shaft, centrifugal non-ferrous impeller, sintered silicon carbide seal, and modular construction. This model has a shaft and bearing module that can be easily removed and replaced. Armstrong Pump Series S & H circulator pump deploy a proven fixed-speed design that is cost-effective, durable, and easy to maintain. Models are available in the traditional sleeve-bearing design as well as the new, permanently-lubricated, maintenance-free design. The three piece modular construction, which uses a universal replacement shaft and bearing module, and the back pull-out design allows for easy replacement of wear components. Series S & H in-line circulators are suitable for applications such as hydronic heating and cooling, domestic water systems, multi-stage zoning, and general industrial service.

Typically ships in 1-2 weeks.

Features:

Weight

35 lbs

Dimensions

20 × 8 × 8 in

If you need help with your order or have any questions we are ready to help!
CALL INLINE SALES (604) 590-4414 FOR ASSSISTANCE

We work hard to get your order out as quickly as possible. In-stock products ship within 24 hours of your purchase. Custom-built pumps that are in stock are typically assembled and ready to ship within 5–7 business days. Orders are shipped Monday through Friday, between 8:00 AM and 4:30 PM (Pacific Time).

Armstrong H-41 Series H In-line Circulator 1″ Flg 1/6HP 115v 1Ph 174035MF-113

Typically ships in 1-2 weeks.

Additional information

Weight	35 lbs
Dimensions	20 × 8 × 8 in

Specifications

Brand	Armstrong Fluid Technology
MPN	174035MF-113
Armstrong Pumps Series	Series H
Model	H41-1-BF
Pump Construction	Cast Iron-BF (Brz Fitted)
Pump Type	Circulator
Pump Class	Booster
Pump Mounting	In-Line
Pump Connection Size	1″
Pump Connection	Flanged
Flanges Included	Yes
Motor HP	1/6 HP
Motor RPM	1800 RPM
Motor Voltage	115V
Motor Phase	1 Ph
Motor Hertz	60 Hz
Motor Enclosure	ODP
Working Pressure	125 psi
Max Temp	225°F
Potable Water	No
UPC	672807409425
Replaces	Armstrong Pump 174035-113
Weight	34.00

Downloads

Circulators_1050_and_1060_Brochure

Astro 2-Solution Outline

Armstrong Warranty

Armstrong Pump Parts Brochure

Armstrong Pump Parts Catalogue Condensed

Armstrong Pump Parts Catalogue

Armstrong

The Armstrong circulator pump is one of the best on the market and with their expertise in fluid flow, heat transfer, variable speed, and demand based control, Armstrong Fluid Technology leads the fluid systems industry, including plumbing and hvac in providing the most energy efficient and cost effective solutions to building professionals and owners around the globe. We carry both the commercial and residential line of Armstrong Pumps including commercial series 4030 base mounted end suction pumps, series 5200 & 5240 sump sewage pumps and series 4300 vertical in-line pumps, series 4360 vertical in-line pumps, 4380 vertical in-line pumps. Most residential pumps are normally stocked including the Armstrong Astro circulators, Armstrong series E.2 circulators and the Armstrong series S&H 3-piece circulating pumps.
