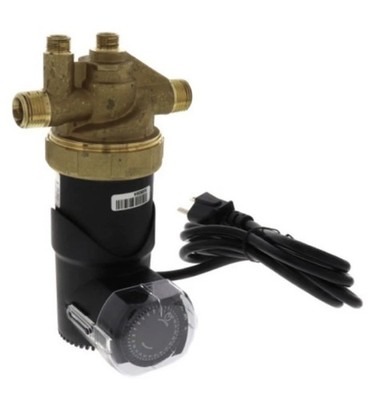

Name: LHB08100098 Ecocirc Circulator w/ Built-In Fixed Thermostat &amp; Timer, Lead Free Brass (1/2" NPT)
Brand: Bell &amp; Gossett
SKU: 4449
Availability: InStock

LHB08100098 Ecocirc Circulator w/ Built-In Fixed Thermostat & Timer, Lead Free Brass (1/2″ NPT)Bell & Gossett

LHB08100098 Ecocirc Circulator w/ Built-In Fixed Thermostat & Timer, Lead Free Brass (1/2″ NPT)

Autocirc circulators are energy efficient using permanent magnet, ECM (electronically commutated motor) technology. The autocirc circulators are designed specifically for standard water heaters. These circulators are lead free and are assembled with a timer, cord and plug.

Features & Benefits:

Silent during operation
Requires only one pump and one installation for all fixtures on the hot water plumbing line
Does not require a return line
Saves money and thousands of gallons of water annually
Built in 24-hour timer which allows the selection of system operating periods to suit family usage
Built-in fixed thermostat or an optional, adjustable ON thermostat
Comes complete with a 6 ft. long power cord
Designed for potable water applications

LHB08100098 Ecocirc Circulator w/ Built-In Fixed Thermostat & Timer, Lead Free Brass (1/2″ NPT)

Features & Benefits:

Silent during operation
Requires only one pump and one installation for all fixtures on the hot water plumbing line
Does not require a return line
Saves money and thousands of gallons of water annually
Built in 24-hour timer which allows the selection of system operating periods to suit family usage
Built-in fixed thermostat or an optional, adjustable ON thermostat
Comes complete with a 6 ft. long power cord
Designed for potable water applications

Specifications

Material:	Brass
Lead Free:	Yes
Adjustable Thermostat:	No
Adjustable Speed:	No
Plug:	Yes
Max. Working Temp (F):	203°F
Max Pressure (PSI):	145
Voltage:	115V
Hertz:	60
Phase:	1
Power Consumption:	14 Watts
Hose Connection:	3/8″ 1/2″
Height (Inches):	8″
Width (Inches):	4-1/2″
Installation Type:	Under Sink
Application:	Domestic Hot Water
Connection Size:	1/2″
Connection Type:	NPT

Brochure

Autocirc Brochure

Bell & Gossett

Bell & Gossett’s complete line of in-line and base-mounted centrifugal pumps and circulators can handle virtually any HVAC requirement. The pumps are engineered for exceptional performance and rugged durability. They are designed for easy maintenance and to be highly energy efficient. The pumps provide reliable operation in a variety of applications, including hydronic heating and cooling systems, industrial, refrigeration, cooling towers and irrigation.
