Name: Armstrong S-45 Series S In-line Circulator 2-1/2 to 3" Flg 1/4HP 115v 1Ph 174036MF-113
Brand: Armstrong
SKU: 4760
Availability: BackOrder

Armstrong S-45 Series S In-line Circulator 2-1/2 to 3″ Flg 1/4HP 115v 1Ph 174036MF-113Armstrong

$2,169.20

Armstrong S-45 Series S In-line Circulator 2-1/2 to 3″ Flg 1/4HP 115v 1Ph 174036MF-113

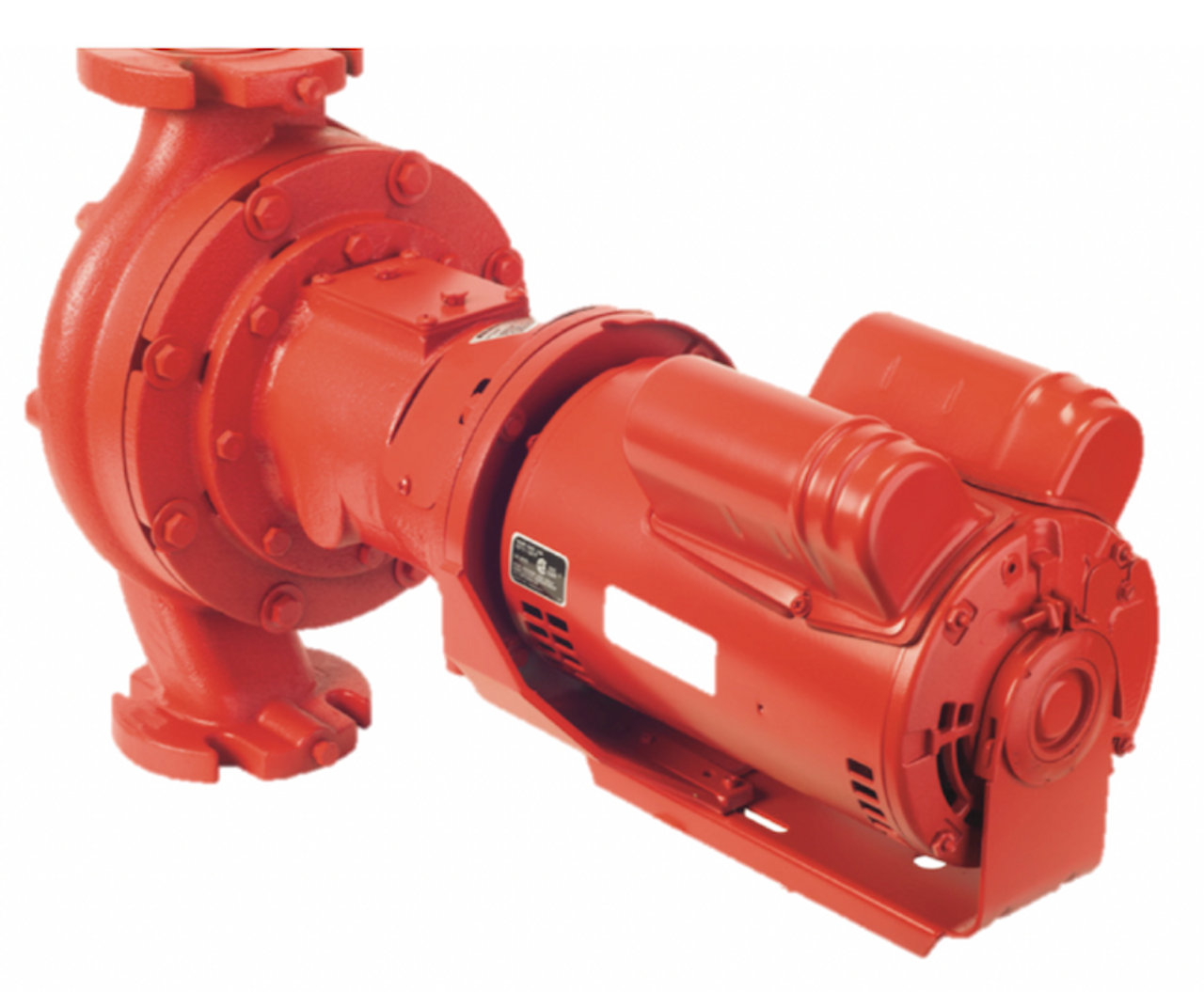

The Armstrong Pump S-45 is a 1/4 HP, single phase circulator pump that features a radially-split bronze-fitted body, oversized stainless steel “maintenance free” shaft, centrifugal non-ferrous impeller, sintered silicon carbide seal, and modular construction. This model has a shaft and bearing module that can be easily removed and replaced. Armstrong Pump Series S & H circulator pump deploy a proven fixed-speed design that is cost-effective, durable, and easy to maintain. Models are available in the traditional sleeve-bearing design as well as the new, permanently-lubricated, maintenance-free design. The three piece modular construction, which uses a universal replacement shaft and bearing module, and the back pull-out design allows for easy replacement of wear components. Series S & H in-line circulators are suitable for applications such as hydronic heating and cooling, domestic water systems, multi-stage zoning, and general industrial service.

Typically ships in 1-2 weeks.

Need Help?
Call For Assistance: (604) 590-4414

BrandArmstrong

StatusAvailable on backorder

CategoriesArmstrong

Please note that we ship Monday - Friday 8:00 AM - 4:30PM PST. Orders are processed as quickly as possible.

SHOP SECURE WITH MONERIS!

Armstrong S-45 Series S In-line Circulator 2-1/2 to 3″ Flg 1/4HP 115v 1Ph 174036MF-113

Typically ships in 1-2 weeks.

Additional information

Weight	45 lbs
Dimensions	19 × 12 × 9 in

Specifications

Brand	Armstrong Fluid Technology
MPN	174036MF-113
Armstrong Pumps Series	Series S
Model	S45-1-BF
Pump Construction	Cast Iron-BF (Brz Fitted)
Pump Type	Circulator
Pump Class	Booster
Pump Mounting	In-Line
Pump Connection Size	2-1/2″, 3″
Pump Connection	Flanged
Flanges Included	No
Motor HP	1/4 HP
Motor RPM	1800 RPM
Motor Voltage	115V
Motor Phase	1 Ph
Motor Hertz	60 Hz
Motor Enclosure	ODP
Working Pressure	125 psi
Max Temp	225°F
Potable Water	No
UPC	672807409692
Replaces	174036-113
Weight	43.98
