Armstrong 811757-002 Motor 3/4HP 1725RPM 115/208-230V 1Ph ODP 56ZArmstrong

$1,043.80

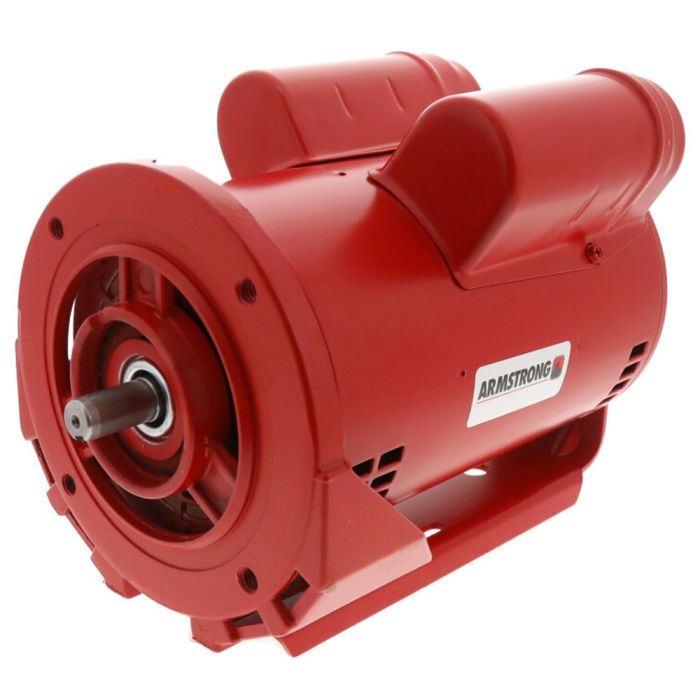

Armstrong 811757-002 Motor 3/4HP 1725RPM 115/208-230V 1Ph ODP 56Z

Armstrong motor 3/4 HP, 1750 RPM, 115/230v, 60Hz, single phase, ODP motor for Series S and Series H pumps. This motor features a permanently lubricated design that requires minimal maintenance.

SKU811757-002
Status1 in stock
Categories

Armstrong 811757-002 Motor 3/4HP 1725RPM 115/208-230V 1Ph ODP 56Z

Armstrong motor 3/4 HP, 1750 RPM, 115/230v, 60Hz, single phase, ODP motor for Series S and Series H pumps. This motor features a permanently lubricated design that requires minimal maintenance.

Additional information

Weight 30 lbs
Dimensions 14 × 10 × 10 in

Specifications

Brand Armstrong Fluid Technology
MPN 811757-002
Pump Part Type Motor
Model 56B17D11008A
Motor HP 3/4 HP
Motor RPM 1725 RPM
Motor Voltage 115/208-230V
Motor Phase 1 Ph
Motor Hertz 60 Hz
Motor Enclosure ODP
Motor Frame Size 56Z
Replaces 116641-06Z, 116641-062, 116641-262, 811777-002
Weight 29.11

Downloads

Armstrong Fluid Technology Circulator Pumps Replacement Parts Catalog

Armstrong Fluid Technology Circulator Pumps Replacement Parts Condensed Catalog

Armstrong Fluid Technology Circulator Pumps Replacement Parts Brochure

Armstrong Fluid Technology Circulator Pumps Parts Comparison Bulletin

Armstrong

The Armstrong circulator pump is one of the best on the market and with their expertise in fluid flow, heat transfer, variable speed, and demand based control, Armstrong Fluid Technology leads the fluid systems industry, including plumbing and hvac in providing the most energy efficient and cost effective solutions to building professionals and owners around the globe. We carry both the commercial and residential line of Armstrong Pumps including commercial series 4030 base mounted end suction pumps, series 5200 & 5240 sump sewage pumps and series 4300 vertical in-line pumps, series 4360 vertical in-line pumps, 4380 vertical in-line pumps. Most residential pumps are normally stocked including the Armstrong Astro circulators, Armstrong series E.2 circulators and the Armstrong series S&H 3-piece circulating pumps.
