Bell & Gossett Series e-1531 3BD

Bell & Gossett e-1531 3BD pumps replace the old Bell & Gossett 1531 3BB and 1531 3BC pumps. The e-1531 pumps have a re-designed volute, providing improved hydraulic performance while maintaining the same “piping-in” dimensions as the old 1531 pumps, thereby allowing for easy replacement. The pumps are base-mounted, end-suction, and close-coupled with a heavy duty cast iron volute rated to 175 psi working pressure. They feature an internally flushed mechanical seal that ensures maximum seal face lubrication, heat dissipation, and debris removal without the need for vulnerable, external flush tubing. Its back pull-out design allows for relatively easy maintenance. An ISA G6.3 balanced stainless steel impeller provides quiet, vibration-free performance.

Specifications

Manufacturer (Brand) Bell & Gossett
MPN (Manufacturer Part Number) N/A
Bell & Gossett Series Series e-1531
Bell & Gossett Model 3BD
Pump Size N/A
Replaces Bell & Gossett Model 3BB, 3BC
Pump Type Centrifugal
Mounting Type Base-Mounted
Construction Cast Iron
Connection Size 3″ x 4″
Connection Type Flanged
Flanges Included No
Motor HP 5 – 60 HP
Motor RPM 1770 – 3600 RPM
Voltage 208-230/460v/575V
Motor Phase Three
Hertz 60Hz
Motor Enclosure TEFC – ODP
Motor Frame Size 184 – 326JM
Shaft Size 1-1/4″ – 1 5/8″
Impeller Size 9-1/2″
Working Pressure 175 psi
Max Temp 225°F
Application Heating & Cooling
UPC (GTIN) N/A
Weight 180 – 660 LBS

Downloads

B&G E-1531 E-1532 Install Instructions

B&G E-1531 Product Brochure

B&G E-1531 Pump Curves

B&G E-1531 Pump Parts List

B&G E-1531 Pump Specifications

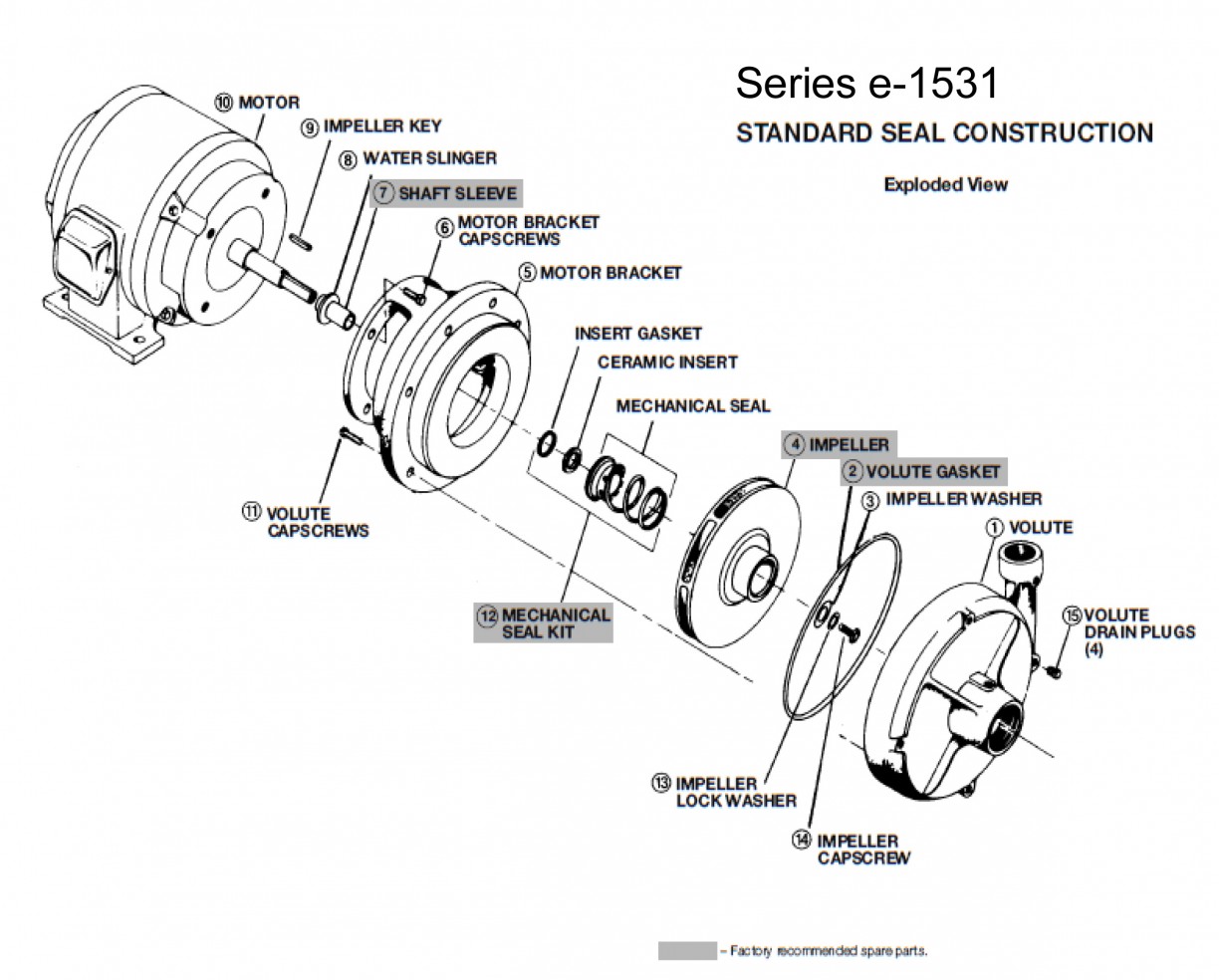

Drawings
